Name: 132KV Alta tensión 15m~30m Pollo de energía de acero Transmisión de calefacción de calefacción
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 132KV Alta tensión 15m ~ 30m Transmisión de calefacción de alta tensión de alta tensión de alta tens
Price: 500.00 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Name: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

Type: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

El material: con una resistencia a la corrosión no inferior a 460 mPa

Shape: Octagonal

Alturas: Entre 15 y 30 m

Galvanization standard: hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm

El grosor: 3 ~ 6 mm

Welding standard: AWS D1.1 with penatration rate no less than 80%-100%

Joint of poles: 50 years

Resaltar:

30m de acero de la energía del poste

Polvo eléctrico de acero de 132 KV

15m de acero en el poste eléctrico

Información básica

Place of Origin: China

Nombre de la marca: Milky Way

Certificación: ISO9001

Número de modelo: 132KV Alta tensión 15m ~ 30m Transmisión de calefacción de alta tensión de alta tensión de alta tens

Pago y Envío Términos

Packaging Details: as per customer request

Delivery Time: usually 2 weeks after confirming

Payment Terms: L/C,T/T

Supply Ability: 300 pieces pole per day

Galería

132KV Alta tensión 15m~30m Pollo de energía de acero Transmisión de calefacción de calefacción

Descripción de producto

132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

`Specification`	`132KV 15m~30m transmission electrical steel power pole`
`Type`	132KV 15m~30m transmission electrical steel power pole
`Shape`	`Octagonal`
`Material`	`ASTM 572 grade 60 with yield strength not less than 450mpa`
`Torlance of dimenstion`	`-0.02`
`Design Load in Kg`	`300~ 1000 Kg appliced to 50cm from the to pole`
`Surface treatment`	`Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm`
`Standard`	`Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123`
`Length of per section`	`Within 11.8m once forming without slip joint.`
`Option of steel power pole`	`Height from 15m to 30m Flange mounted or planted type`
`Production Process of high mast pole`	`Raw material test → Cutting →Molding or bending` `→Welidng (longitudinal )→Dimension verify →Flange welding` `→Hole drilling →Calibration →Deburr→Galvanization or powder` `coating ,painting →Recalibration→Thread →Packages`
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.

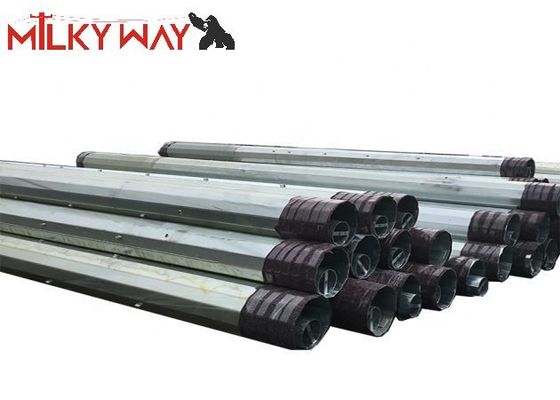

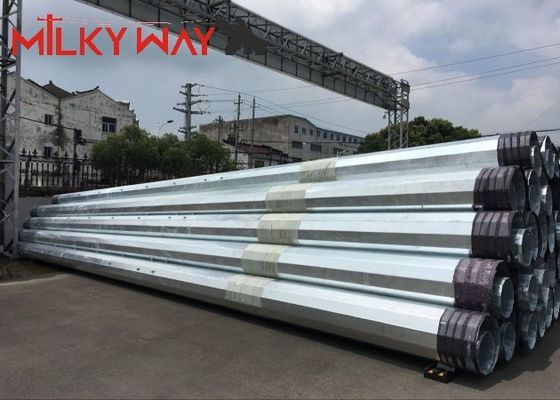

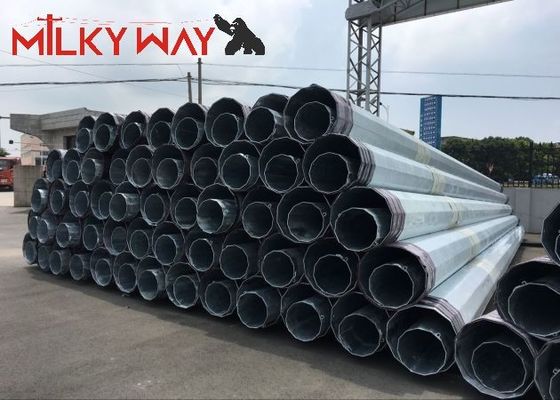

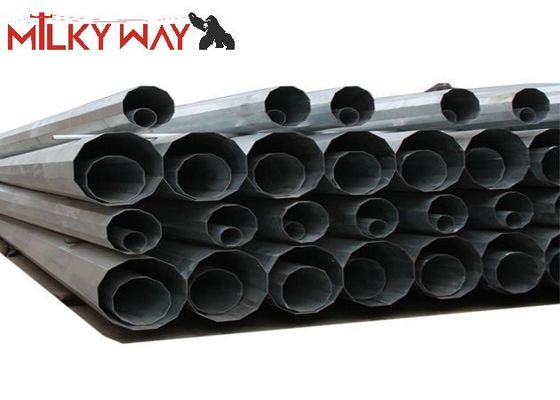

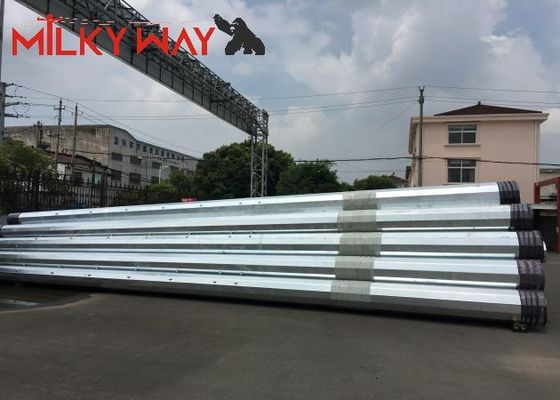

Products Picture

132KV Alta tensión 15m~30m Pollo de energía de acero Transmisión de calefacción de calefacción 0

Material

ASTM 572 grade 50 with yield strength not less than 345mpa

3.Glavanization

---Average thickness of the galvanization : not less than 86 μm

4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

132KV Alta tensión 15m~30m Pollo de energía de acero Transmisión de calefacción de calefacción 7

Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.

132KV Alta tensión 15m~30m Pollo de energía de acero Transmisión de calefacción de calefacción 8
