15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines

100
MOQ
$99-120
Precio
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Corriente nominal: 10-200
Voltaje nominal: 10-220
Tratamiento superficial: Galvanización en caliente
Tolerancia de las dimensiones: + - el 2%
Estándar de soldadura: AWS D 1,1
Estándar de la galvanización: ASTM A 123
Capacidad de fabricación: 300 pedazos por día
Material: Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Rango de potencia: 10 KV ~ 550 KV
Factor de seguridad: 8 para conducir alambre, 8 para alambre de conexión a tierra
Carga de diseño: 300 ~ 1000 kg aplicado a 50 cm desde el poste superior
Velocidad del viento: 160 km/hora (30 m/s)
Fuerza de producción mínima: MPa 355
Resistencia a la tensión mínima: MPa 490
Resistencia a la tracción máxima: mpa 620
Resaltar:

15m Steel Utility Power Pole

,

2.75mm Thickness Steel Utility Power Pole

,

850kg Load Steel Utility Power Pole
Información básica
Lugar de origen: Jiangsu, China
Nombre de la marca: MilkyWay
Número de modelo: postes eléctricos de acero, poste eléctrico
Pago y Envío Términos
Descripción de producto
15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
Type Octagonal NGCP 69KV Galvanized electric steel power pole
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Rating 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000kg applied to 50cm from top pole
Surface Treatment Hot dip galvanized (ASTM A 123) or color polyester powder coating
Wind Resistance 160 km/hour (30 m/s)
Standards ISO 9001
Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.

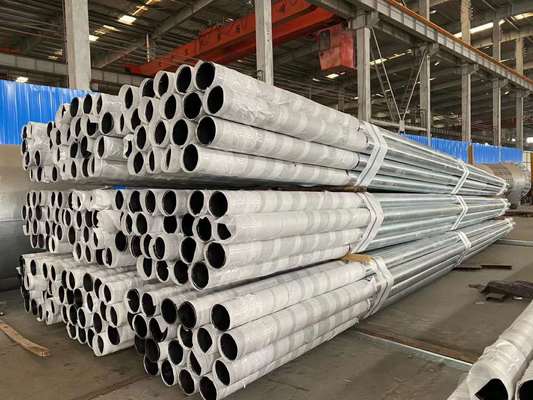

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 0
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.

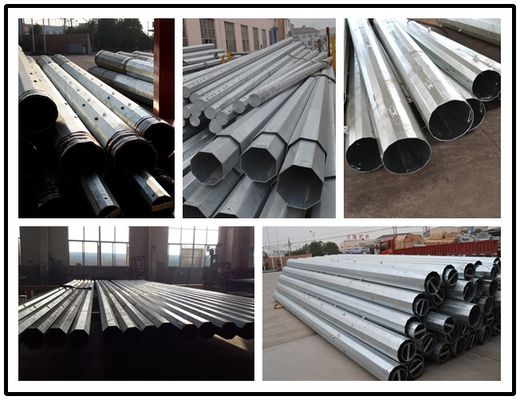

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 1
Certifications

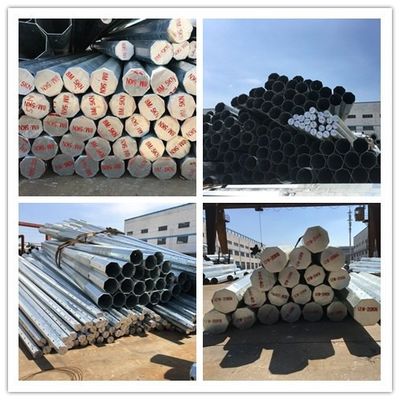

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 2
Project Examples

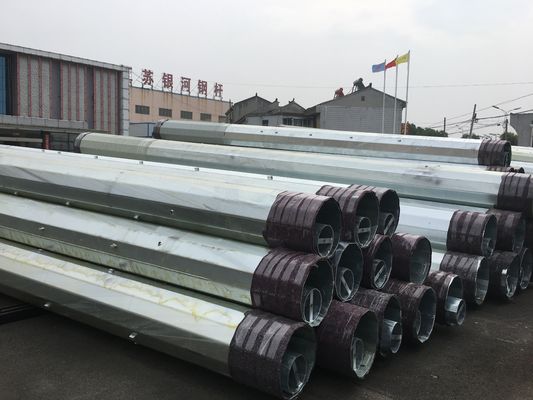

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 3 15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 4
Ordering Information
  • Price Terms: EXW, FOB, CFR, CIF
  • MOQ: 1 set for customized orders
  • Payment: 30% deposit by T/T, balance before shipment
  • Delivery: Ready within 10 working days after deposit
  • Warranty: 30 years
  • Surface Treatment: Hot dip galvanization standard
Our Services
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 5
Pre-Sales Service
  • Inquiry and consulting support
  • 24-hour response time
  • Factory visits available
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 6
After-Sales Service
  • Installation training
  • Inspection reports and material certificates provided
Packaging & Shipping

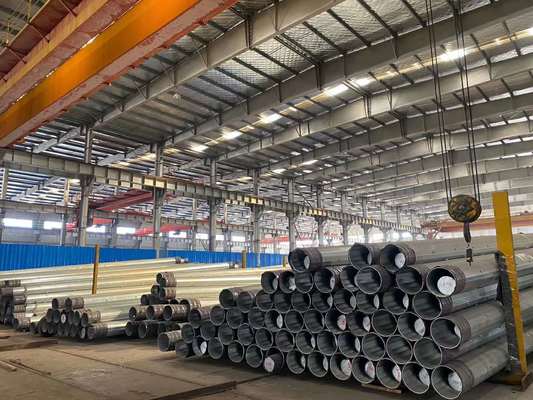

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 7
Type Quantity
40&45FT Electric poles for Philippine Market 26 Tons/40HQ Containers
35FT Electric poles for Philippine Market 26 Tons/40HQ Containers

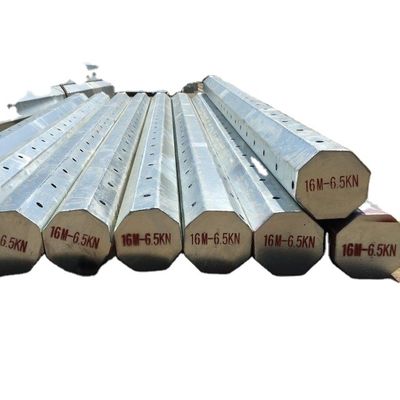

15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 8
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 9
