Transmisión eléctrica redonda postes un envase de los 40ft 35 pies de poder poste de acero

1 PC
MOQ
Negociable
Precio
Transmisión eléctrica redonda postes un envase de los 40ft 35 pies de poder poste de acero
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo: un envase los 30ft poste para uso general de acero y un polo eléctrico de los 40ft del polo del acer
Forma: Ronda, cónica
Condiciones de pago: T / T, L / C
Espesor: 2.5mm-16m m
superficie acabada: Inmersión caliente galvanizada
estándar: /BV/ISO9001
Resaltar:

polos de la corriente eléctrica

,

polos eléctricos de la transmisión

Información básica
Lugar de origen: Jiangsu, china
Nombre de la marca: Milky Way
Certificación: /BV/ISO9001
Número de modelo: Poste para uso general de acero
Pago y Envío Términos
Detalles de empaquetado: como la petición de los clientes
Tiempo de entrega: 10-30 días laborables después de recibieron su pago
Condiciones de pago: T/T, l/c a primera vista
Capacidad de la fuente: 30.000 toneladas por mes
Descripción de producto

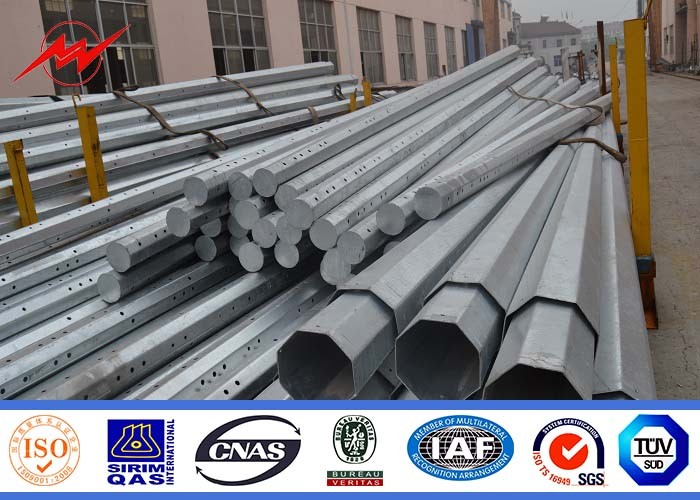

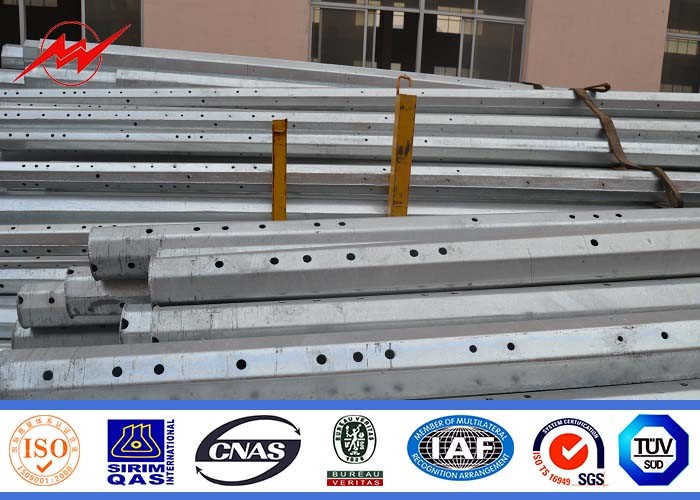

one 40ft container 30ft Steel Utility Pole and one 40ft container 35ft steel pole electric pole





Features:



 Pole’s height

All available

Type

Straight Pole ,Tensile Pole ,Turn Pole,etc

Shape of pole

Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

Crossarm

 Single or double crossarm, dimension as per customers’ requirement

Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65

 Wall thickness

≥2.5mm

Once forming

13m without joint



Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.

 Joint

 Joint with insert mode, flange mode.

Base plate mounted

Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.

 Galvanizing

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.

Voltage

 10KV~550KV

Certificates

 ISO9001-2008 , AAA credit rating, etc

Protection

Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area





Packing & shipping





We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.



Transmisión eléctrica redonda postes un envase de los 40ft 35 pies de poder poste de acero 0







Our Servises:





1.Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



 7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
